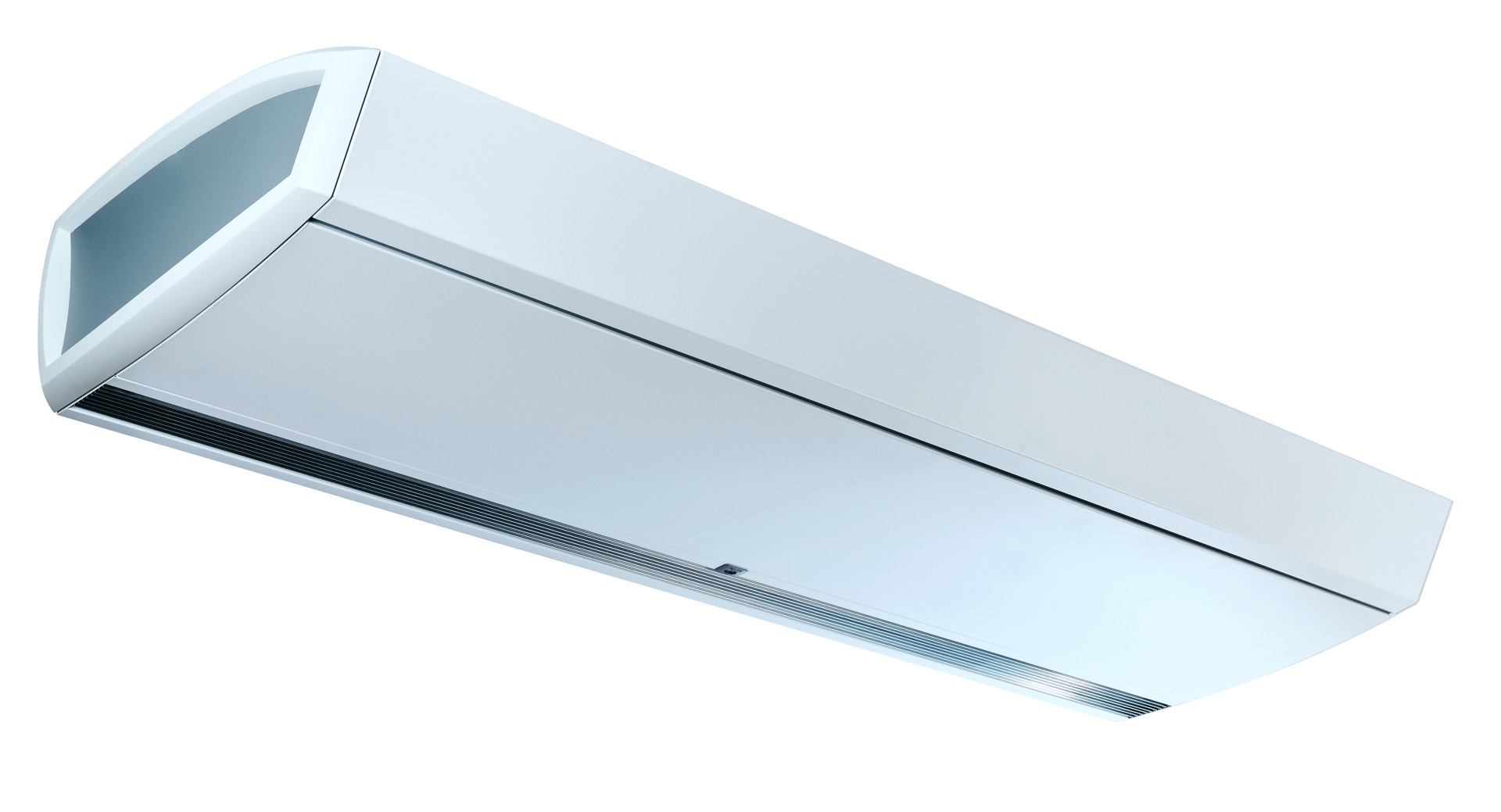

SR DX Comfort Air Curtain
Biddle and Daikin, the two leading companies in the climate sector have joined forces in developing a unique ”plug and play” climate concept for shops and public buildings.
Two different systems are offered within this energy-conscious climate control concept: SRV and SRQ.
SRV Air Curtain

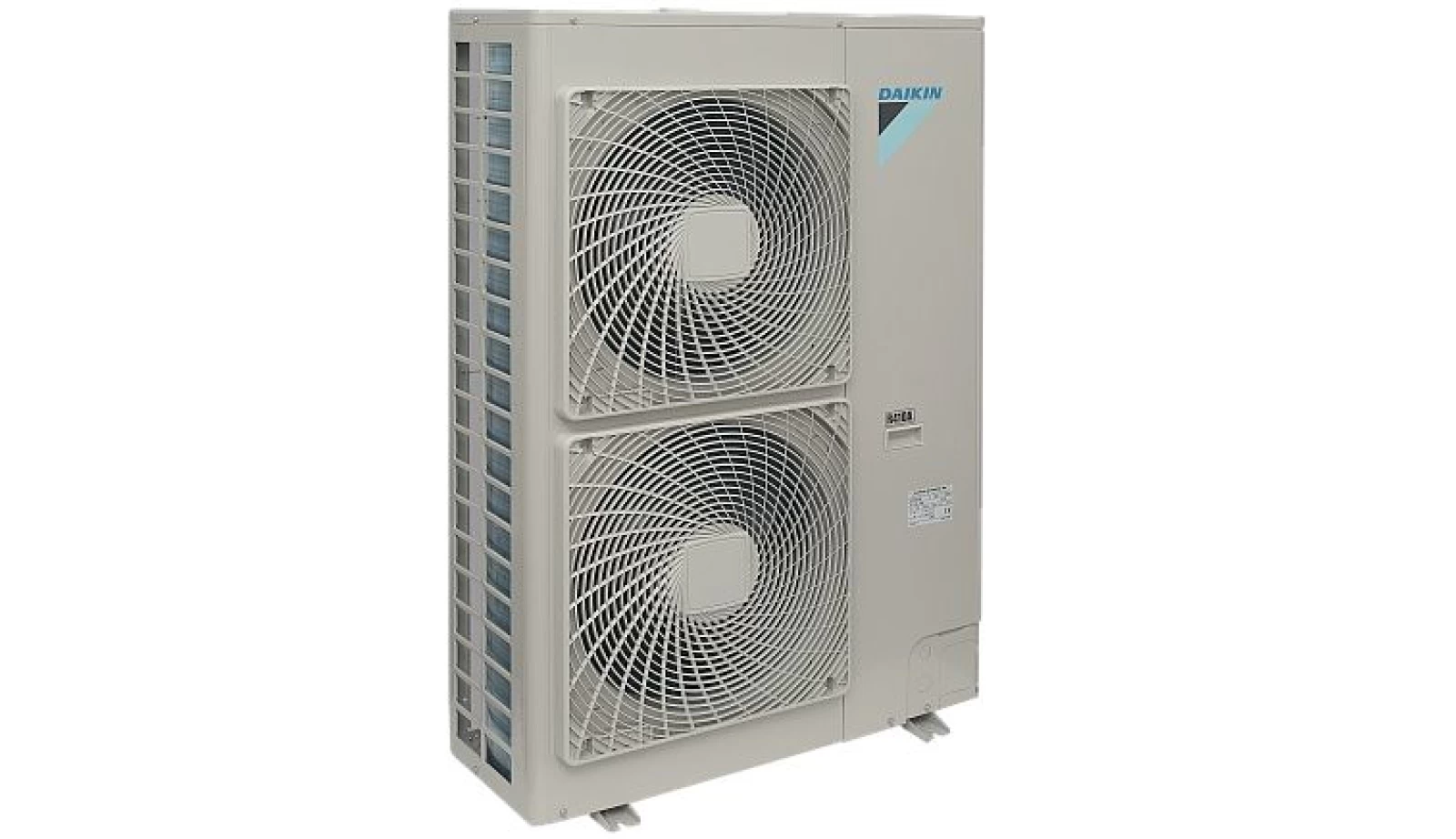

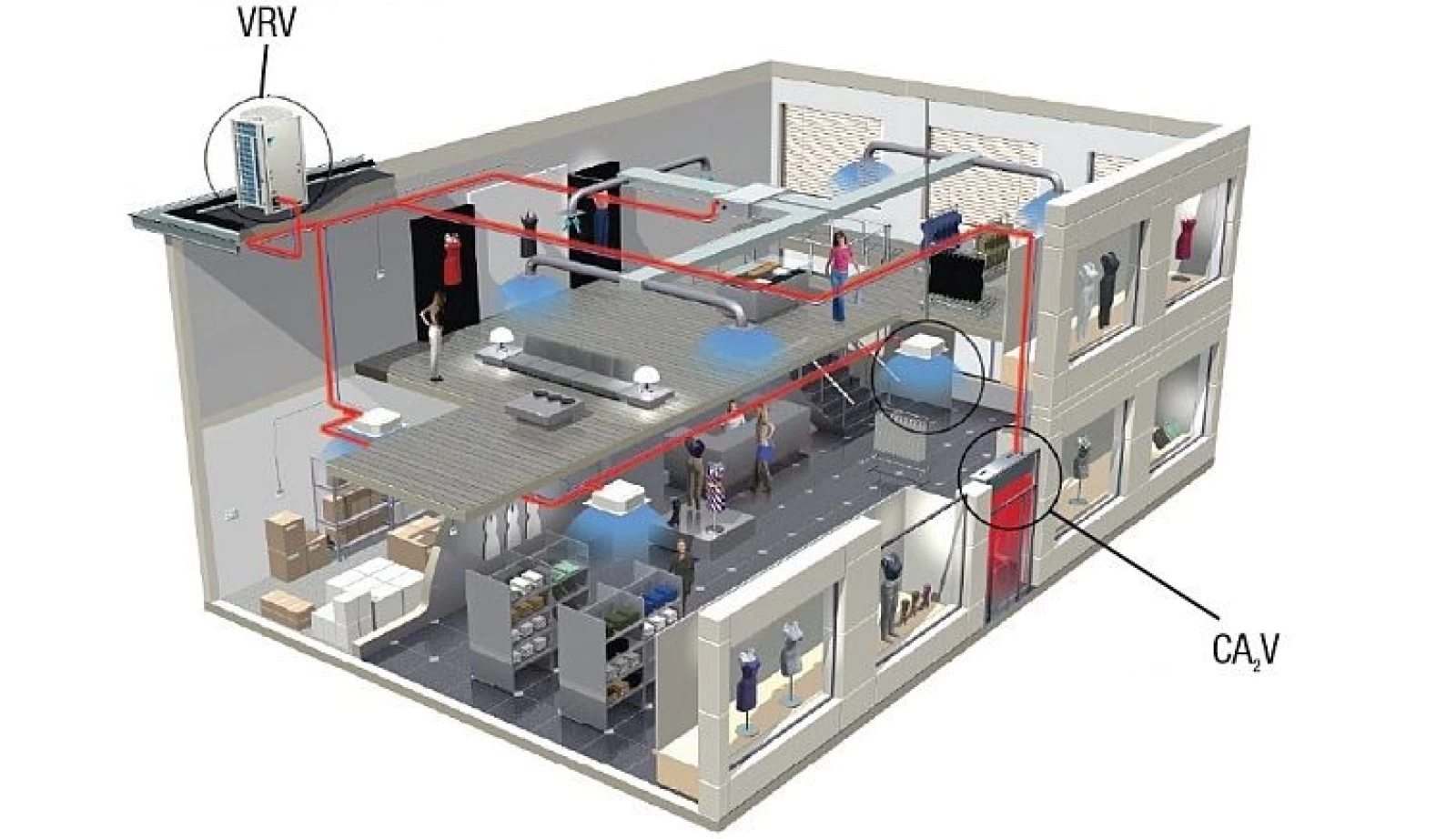

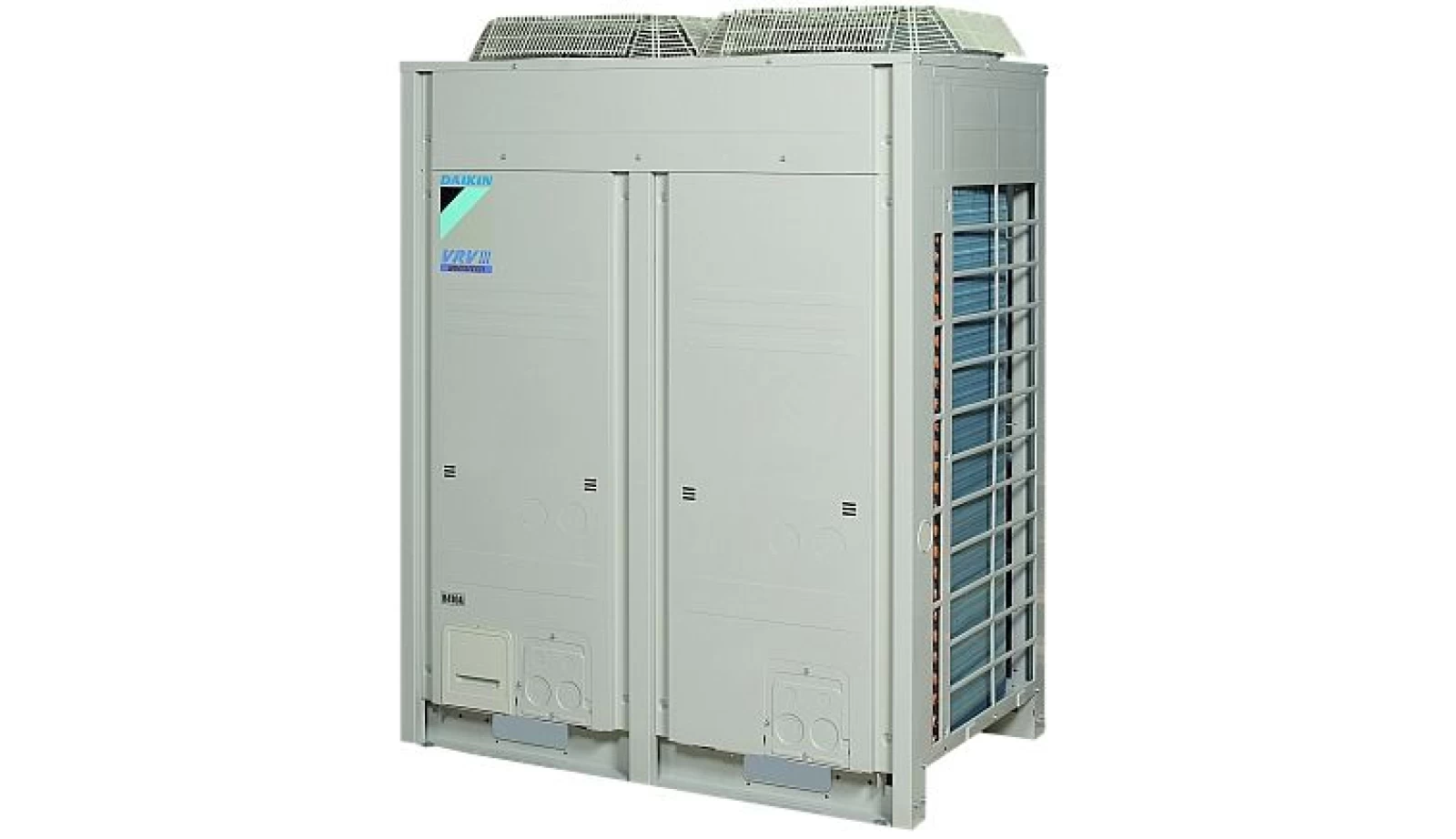

The climate system consisting of the SR air curtain, model SRV, Daikin VRV outdoor unit and indoor units supplies heating, cooling, ventilation and climate separation in one energy-efficient installation. This integrated climate system is energy efficient, has a quick payback time and provides a comfortable indoor climate.
SRQ Air Curtain With Heat Pump
The SR air curtain, model SRQ, is available in combination with a Daikin ERQ heat pump. The heat pump provides the heating energy required for climate separation in the doorway. The heating and cooling in the building are controlled separately. This climate solution is sustainable, energy saving and creates a pleasant indoor climate.
Features & Benefits
- Perfect climate separation
- A smart investment
- Patented air curtain technology
- Controlled air strength technology
- Low energy consumption

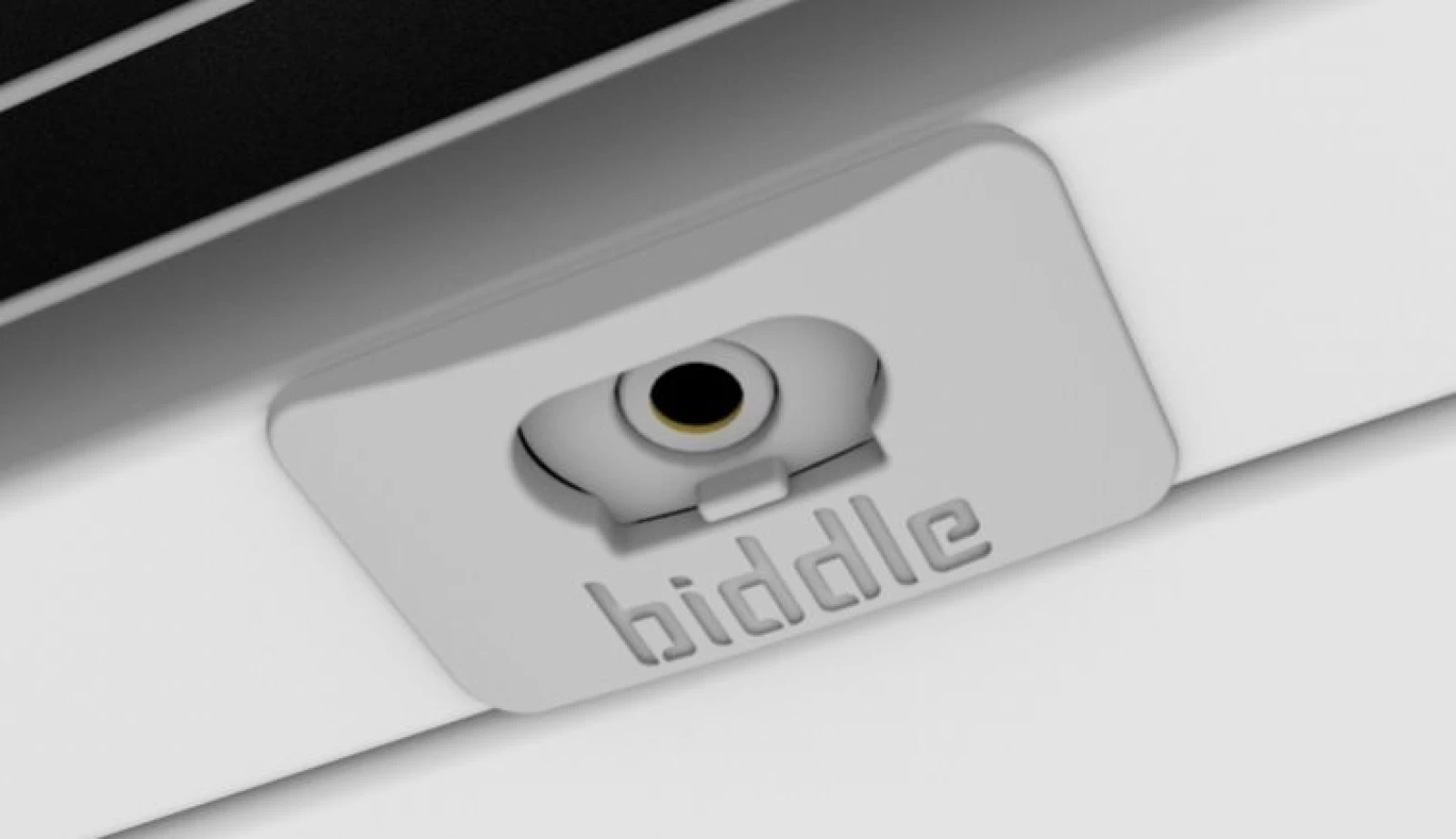

The patented i-Sense infrared technology scans the environment around the doorway and collects information on indoor and outdoor temperatures by measuring the exact temperature at floor level. The i-Sense can also detect when the door is closed.
The patented rectifier ensures that the turbulent air from the fans is transformed into a virtually laminar air stream. The air stream reaches the floor with much less air speed than it would in a rectifier-free air curtain, whilst ensuring the discharge air stream stays within the building.
The CHIPS technology automatically adjusts the discharge velocity, air volume, discharge temperature and heat output. Outside, return air and discharge temperature sensors are used to determine how much heat is required and the bespoke control algorithm ‘translates’ the data into the strength (a combination of air volume and velocity) required for complete climate separation and comfort, negating the need for the user to continually adjust the air curtain’s setting when the inside/outside temperatures and/or weather change.
Controlled Air Strength
The SR Air Curtain offers six different settings, each with its own discharge width that adapts automatically to the climatic conditions around the doorway. As the air curtain strength increases, the air valve adjusts the discharge width, ensuring optimal climate separation. The air volume and discharge velocity increase only as needed, preventing collision with the floor and maximising heat transfer to warm incoming cold air. This results in enhanced indoor comfort and reduced energy consumption, making the Biddle SR Air Curtain an excellent choice for climate control.
Building Management System (BMS)

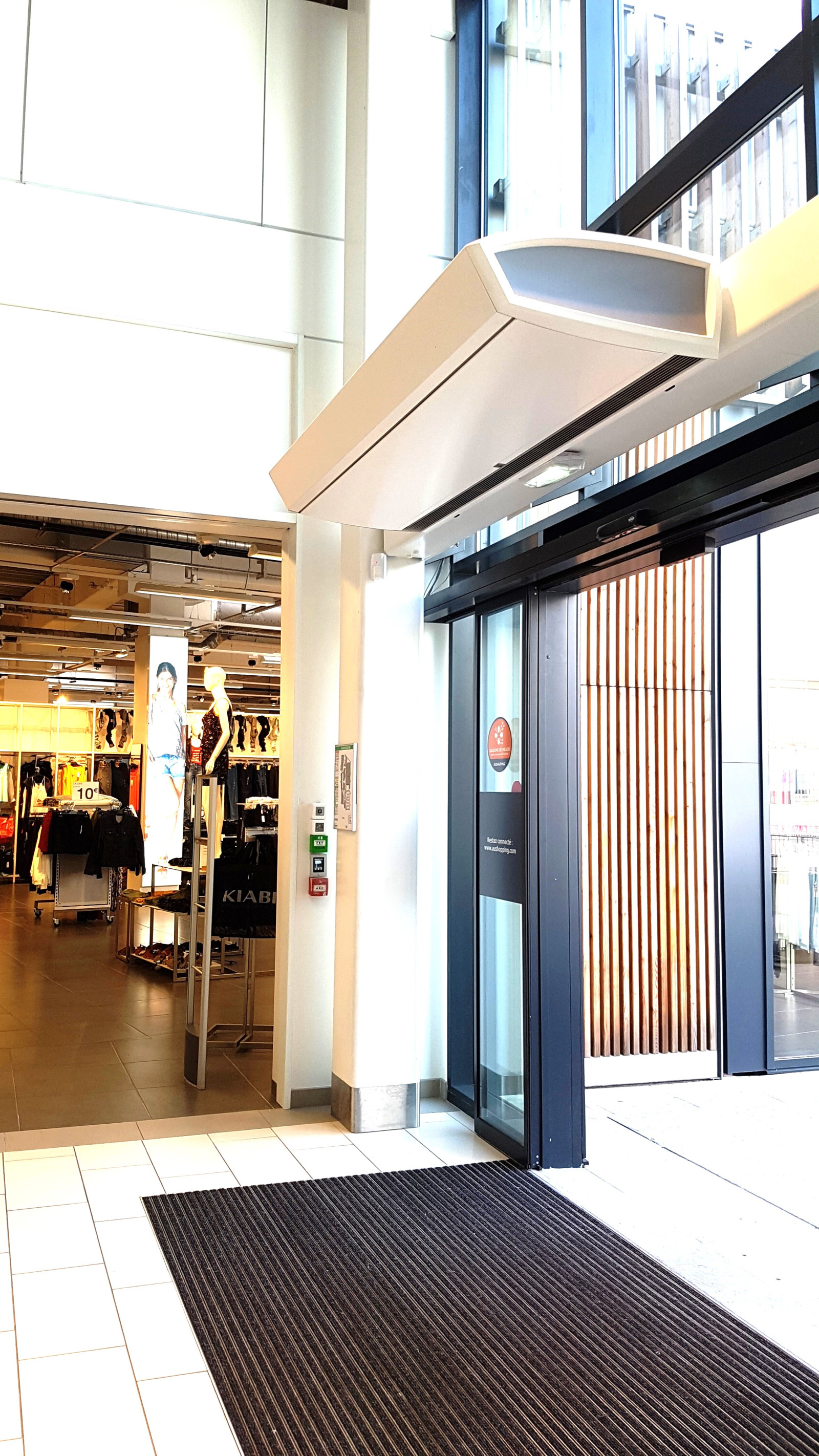

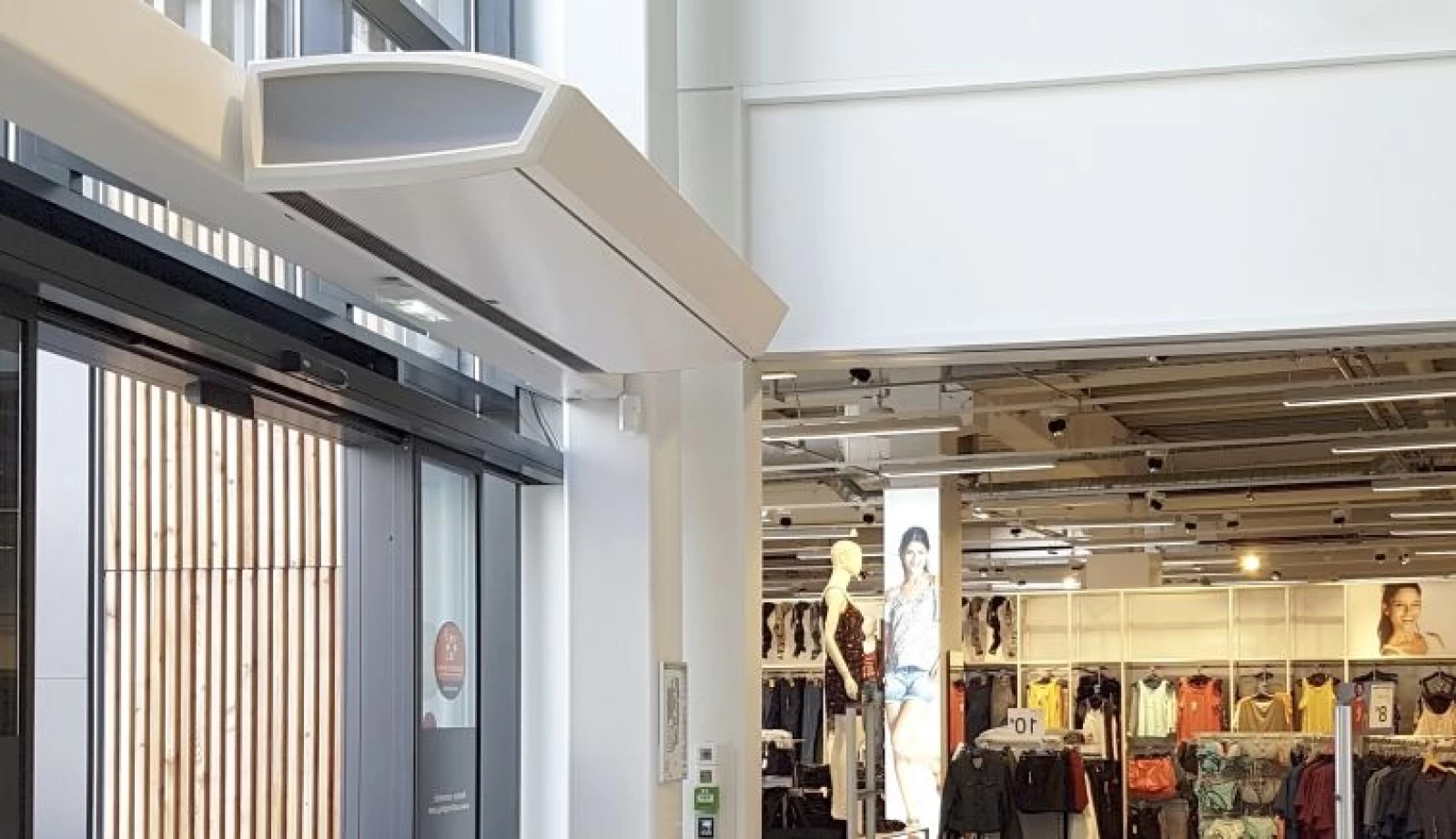

Explore our in-situ images to see how our product can enhance the look and feel of any room.
